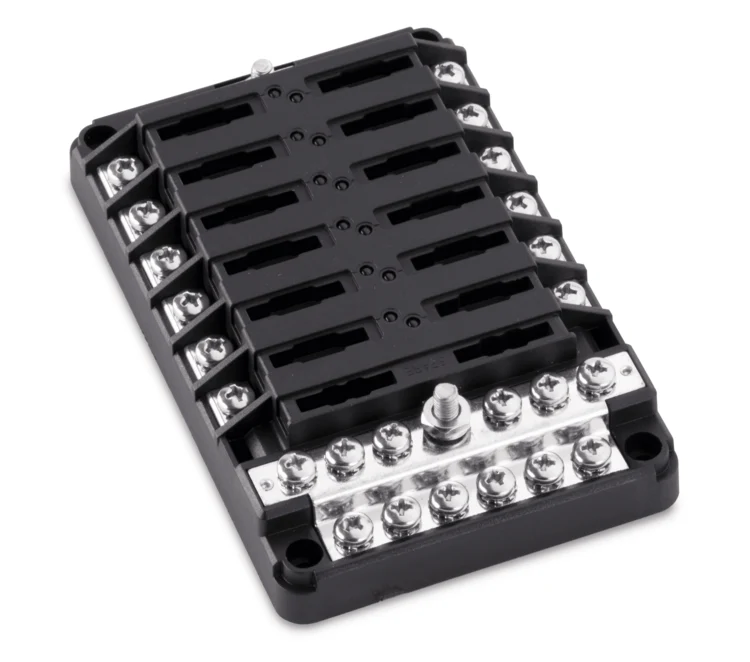

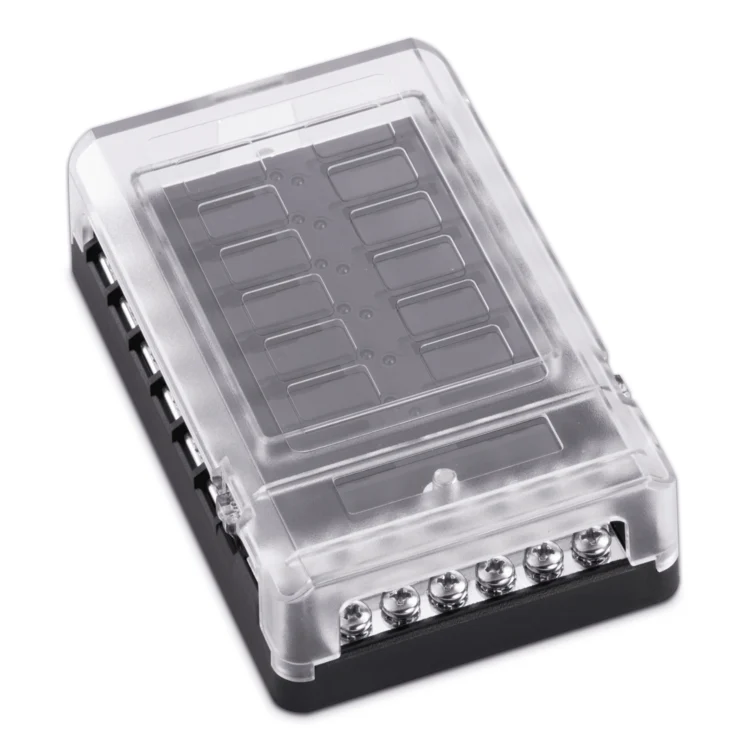

12 gang with bus bar and cover. ABYC/USCG compliant. Transparent cover with recessed area for labels (60pc. decal set included). Accepts ATP/ATC/ATO blade style fuses up to 30A. LED indication of blown fuses. Storage for 2 spare fuses.

• Overall size: 3 3/8"W x 5 1/4"L x 1 5/8"H
• Max Voltage Rating: 32VDC
• Rating per Circuit: 30A
• Max Cumulative Rating per block: 100A
• Terminal Stud Size: M5
• Screw Size: M4
• Accepts ATP/ATC/ATO blade style fuses up to 30A
